E-Evolution
E-evolution

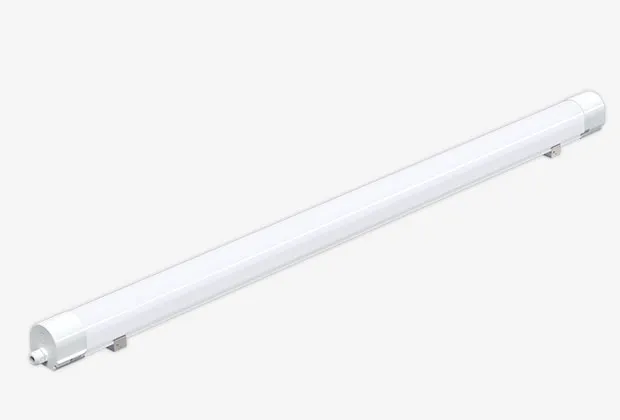

E-evolution combines economic efficiency with a extractable design rely on PC housing and Aluminum heat sink, enabling easy replacement of PCB and driver for future maintenance. It supports CCT power switches, emergency backups, and sensors. With single, bilateral, and intermediate connection options, its versatility and multi-length simplifies inventory management to meet diverse requirements.
Technical Specifications
-
ITEM MODEL NO. POWER LM/W FUNCTION LENGTH
-
1
T072S3-20-P2
20W switchable
140
ON/OFF
600mm
-
2
T072S3-20XX-T9
20W switchable
140
ON/OFF
600mm
-
3
T074S3-40-P2
40W switchable
150
ON/OFF
1200mm
-
4
T074S3-40XX-T9
40W switchable
150
ON/OFF
1200mm
-
5
T074S5-40-P4
40W
150
DALI2
1200mm
-
6
T074S5-40XX-P4
40w
150
DALI2
1200mm
-
7
T075S3-45-P2
45W switchable
160
ON/OFF
1500mm
-
8
T075S3-45XX-T9
45W switchable
160
ON/OFF
1500mm
-
9
T075S3-60-P2
60W switchable
150
ON/OFF
1500mm
-
10
T075S3-60-P2
60W switchable
150
ON/OFF
1500mm
-
11
T075S5-60-P4
60W
150
DALI2
1500mm
-
12
T075S5-60XX-P4
60w
150
DALI2
1500mm
GENERAL DATA
- Dimension 600mm
- Material Aluminum+PC@Milky cover
- Luminaire Colour PC White
- Protection Class IP65
- Shock Resistance Category IK08
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates ENEC, CE, D-Mark, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- Driver Philips
- Nominal Wattage 20W-17W-14W-12W by Switch
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC/ DC 220-240V
- Input Current 100mA
- Power Factor λ 0.95
- Inrush Current I Peak 12.3A
- Inrush Current T Width 223μs
- MCB B Type 10A 47
- MCB B Type 16A 76
- MCB C Type 10A 79
- MCB C Type 16A 129
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM ≤0.1
- SVM ≤0.1
- THD <14%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 140lm/w
- Lumen Max 2,800
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle Milky cover 130°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 6pcs
- Carton Dimmnsions 730x285x180mm
- Gross Weight 6.5KG
