E-eplus

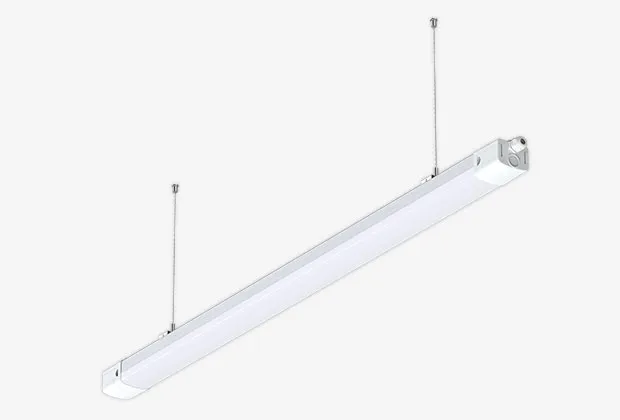

E-Plus Tri-Proof light uses 5x2.5mm² cables, which make the connection more powerful and resistant. L1 L2 L3 phase change design is the simplest way to realize the grouping control of the lights, meet the lighting management requirements at different times, saving energy, and increasing the dimming function.
Technical Specifications
GENERAL DATA
- Dimension 1200mm
- Material Aluminum+PC@Milky cover
- Luminaire Colour White
- Protection Class IP65
- Shock Resistance Category IK10
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates ENEC, CE, CB, D-Mark, RoHs
- Warranty 5 years
ELECTRICAL DATA
PstLM
- SVM ≤0.003
- THD 8%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 160lm/w
- Lumen Max 7,200
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle Milky cover 130°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 6pcs
- Carton Dimmnsions 1375x285x180mm
- Gross Weight 15.5KG
