Steel Tubes

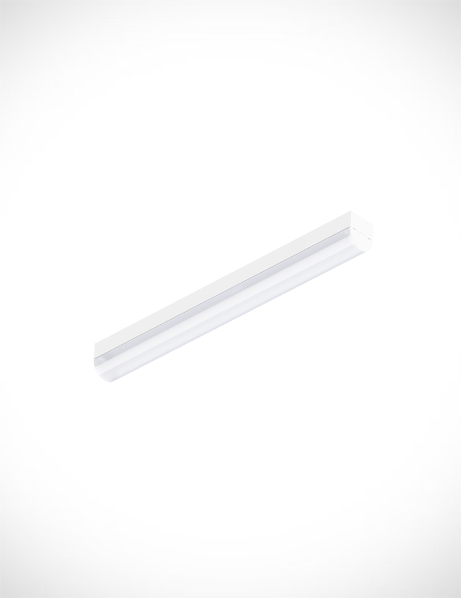

Tubes B11 (Steel)
LED BATTEN is a perfect and flexible lighting solution to replace existing T8 T5 tubes. Multilu-men and Multicolor can meets different project demands. Simple and fast installation makes
high efficiency and low cost work.
Technical Specifications
GENERAL DATA
- Dimension 600mm
- Material Steel Body+PC@Milky cover
- Luminaire Colour White
- Protection Class IP20
- Shock Resistance Category IK04
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates CE, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/OFF
- Driver BOKE
- Nominal Wattage 20W-17W-14W-11W by Switch
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC/ DC 220-240V
- Input Current 200/ 250/ 300/ 350mA
- Power Factor λ 0.95
- Inrush Current I Peak 9.7A
- Inrush Current T Width 205μs
- MCB B Type 10A 36
- MCB B Type 16A 57
- MCB C Type 10A 60
- MCB C Type 16A 96
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM <1
- SVM <0.1
- THD 20%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 140lm/w
- Lumen Max 2,800
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle Milky cover: 130°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 9 pcs
- Carton Dimmnsions 635x242x206mm
- Gross Weight 8 KG
