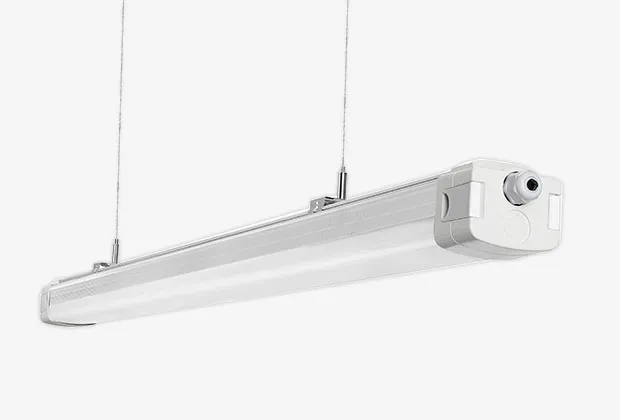

E-open
E-Open comes with five-pole – or optional seven-pole – through-wiring and is DC-enabled. Particularly resistant and high-quality materials make this moisture-proof luminaire exceptionally robust. With its highly efficient features and innovative housing, the time and effort needed to replace older luminaires with E-Open is minimal. Cables are easily and conveniently mounted on either side with open cap fastener.
Technical Specifications
-
ITEM MODEL NO. POWER LM/W FUNCTION LENGTH
-
1
T012H-22-P2
22W
160
ON/OFF
600mm
-
2
T012S-22-B4
22W
140
DALI2
600mm
-
3
T014H-50-PC
50W switchable
160
ON/OFF
1200mm
-
4
T014S-50-P4
50W
140
DALI2
1200mm
-
5
T015H-60-PC
60W switchable
160
ON/OFF
1500mm
-
6
T015H-75-P2
75w
160
ON/OFF
1500mm
-
7
T015S-60-B6
60W
140
DALI2
1500mm
-
8
T015S-75-P4
75W
140
DALI2
1500mm
GENERAL DATA
- Dimension 600mm
- Material Aluminum+PC@Milky cover
- Luminaire Colour White
- Protection Class IP65
- Shock Resistance Category IK10
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates ENEC, CE, CB, D-Mark, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- Driver Philips
- Nominal Wattage Max 22W
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC/ DC 220-240V
- Input Current 100mA
- Power Factor λ 0.95
- Inrush Current I Peak 12.3A
- Inrush Current T Width 223μs
- MCB B Type 10A 47
- MCB B Type 16A 76
- MCB C Type 10A 79
- MCB C Type 16A 129
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM ≤0.1
- SVM ≤0.1
- THD <14%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 160lm/w
- Lumen Max 3,500
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle Milky cover 130°
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 6pcs
- Carton Dimmnsions 730x285x180mm
- Gross Weight 11KG
