N-line
The N-line IP54 version is not only fully dust-proof, but also protected
against heavy splash water from all directions. Ideal for areas with high safety requirements or rough conditions, for example cold stores, canopied outdoor areas, industrial production facilities, technical rooms or teaching kitchens in the education sector.

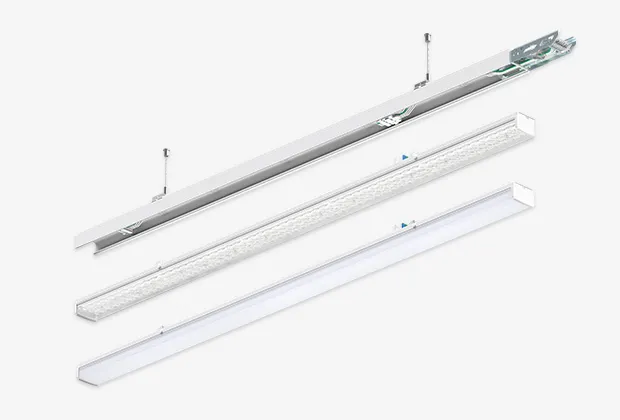

Fast and smooth installation design, N-line can be quickly and easily set up by installers of all ability levels, thanks to its clearly definable components and simple click together assembly.
Different lightdistribution with narrow, medium, wide beam angle and high lumen out from 11,500-18,000lm, can greatly meet your project requirement.
Technical Specifications
-
ITEM MODEL NO. POWER LM/W FUNCTION LENGTH
-
1
RIP5H-60 -P2
58W switchable
170
ON/OFF
1450mm
-
2
RIP5H-68-PC
66W switchable
170
ON/OFF
1450mm
-
3
RIP5P-75-PC
75W switchable
170
ON/OFF
1450mm
-
4
RIP5H-68-P4
66W
170
DALI
1450mm
-
5
RIP5P-68-C4
66W
170
DALI
1450mm
-
6
RIP5P-75-P4
75W
170
DALI
1450mm
-
7
RIP5P-75-C4
75W
170
DALI
1450mm
-
8
RIP5H-70 -B3
52W-70W by Switch
160
1-10V Dimming
1450mm
-
9
RIP7H-64-P2
64W switchable
175
ON/OFF
2025mm
-
10
RIP7H-73-PC
73W switchable
175
ON/OFF
2025mm
-
11
RIP7H-90-P2
88W
175
ON/OFF
2025mm
-
12
RIP5H-90-P4
88W
170
DALI
2025mm
GENERAL DATA
- Dimension 1450mm
- Material PMMA+PC
- Luminaire Colour White 9003 or Black
- Protection Class IP54
- Shock Resistance Category IK08
- Operating Temperature -20° bis +40°C
- Storing Temperature -30° bis +60°C
- Certificates ENEC, CE, CB, RoHs, HACCP
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- Driver Philips
- Nominal Wattage 58W-50W-40W-32W by Switch
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC/ DC 220-240V
- Input Current 200/ 250/ 300/ 350mA
- Power Factor λ 0.95
- Inrush Current I Peak 12.62A
- Inrush Current T Width 276μs
- MCB B Type 10A 19
- MCB B Type 16A 31
- MCB C Type 10A 32
- MCB C Type 16A 51
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM <1
- SVM <0.1
- THD 20%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass Yes, EL marked
- Self-contained Emergency Optional
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 170lm/w
- Lumen Max 9,800
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle 120° /90° / 60° / 30°/ DS25°/ 25° L/R
- UGR <27
- L80 100,000H
PACKAGE DATA
- Packing Unit 8pcs
- Carton Dimmnsions 1492x290x215mm
- Gross Weight 16.8KG
