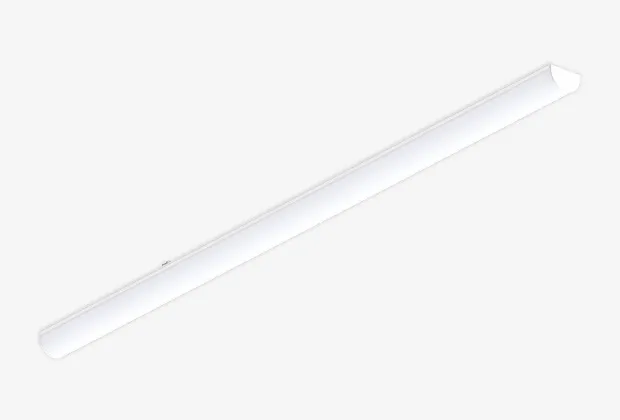

MEGA
MEGA is is a direct replacement for inefficient fluorescent tubes. In just a few minutes, your existing troffers, strips or wraps can be converted to energy-efficient, long-lasting LED light while preserving the look of your space.
Magnet tool-free installation, easy for maintain, save labor cost. lt is widely used to replace the traditional T5/T8 fuorescent tube inside grille light in office, schools, universities, municipal buildings, Healthcare facilities and hospitals.
Technical Specifications
-
ITEM MODEL NO. POWER LM/W FUNCTION LENGTH
-
1
B014D-35-MG
MAX 35W
140
ON/OFF
1195mm
-
2
B01D-50-MG
Max 50W
140
ON/OFF
1450mm
GENERAL DATA
- Dimension 1195mm
- Material Aluminum+ PC
- Luminaire Colour Silver
- Protection Class IP20
- Shock Resistance Category IK04
- Operating Temperature -20°+ 40°C
- Storing Temperature -25° + 65°C
- Certificates CE, RoHs
- Warranty 5 years
ELECTRICAL DATA
- Function ON/ OFF
- Driver Philips
- Nominal Wattage 35W
- Mains Frequency 0/ 50/ 60Hz
- Voltage AC 220-240V
- Input Current 700mA
- Power Factor λ 0.97
- Inrush Current I Peak 17.8A
- Inrush Current T Width 180μs
- MCB B Type 10A 23
- MCB B Type 16A 38
- MCB C Type 10A 39
- MCB C Type 16A 64
- Switching Cycles Before Failure > 500,000
- Protection Class IEC Safety Class I
- PstLM <1
- SVM <0.4
- THD 20%
- Glow Wire Test (°C) 650°C
- Central Emergency Pass N/A
- Self-contained Emergency N/A
PHOTOMETRICAL DATA
- LED Chip SANAN
- Color Temperature 3000/ 4000/ 5000/ 6000K
- LM/W 140lm/w
- Lumen Max 4,900
- CRI/ RA CRI>80 or >90
- SDCM SDCM<5 or <3
- Beam Angle 120°
- UGR <26
- L80 100,000H
PACKAGE DATA
- Packing Unit 10pcs
- Carton Dimmnsions 1220x390x150mm
- Gross Weight 11.5KG
